Lintel / I-Beam Repair & Replacement

What are Lintels and what is their purpose?

Lintels also know as Angle Irons, or I-Beams and C-Channels with welded plates are all used to bridge openings within masonry walls and are found over door and window openings. They are imperative in carrying the cumulative load of multi-floor heights of masonry.

If these crucial steel members corrode and bow, the structural stability of the masonry wall becomes questionable. Faulty lintels will cause the masonry shores to sag, skew, or worst case falls off. For this reason, it is vital that lintels be replaced if found defective.

One obvious sign you may need to have the lintel repaired or replaced would be consistent leaks coming from the top of your window. Deteriorated or rusting Lintels may result in permanent water damage. Instead of leaving them untreated, let Craft Pro Masonry take a look at them for you. We are the building facade restoration contractors who can tell you everything you need to know about the building.

In addition, all openings should have a proper flashing system installed to divert water out and away from the interior of the opening. Flashing with drip wicks are necessary components to keep steel lintels, C-Channels, and I-Beams from corroding.

Your existing lintels should be sound, straight, and level. In addition, the seam between the steel and the brick should be minimal. Large gaps between the lintel and brick are an indication that the steel is deteriorating. Other indicators that the lintels are in need of repair are a rolling effect of the steel plate or sagging in the middle of the angle iron. In any of these cases, lintel replacement is imperative.

Please complete the form to request an estimate. Please be sure to include pictures.
  • Drop files here or
    Please send me pictures of each side of the building; try to get the entire facade in each picture from the straight back standing as far away as possible. The estimator will review the pictures as soon as possible and will be able to give you an accurate diagnosis. He will be in contact shortly and discuss how too proceed.

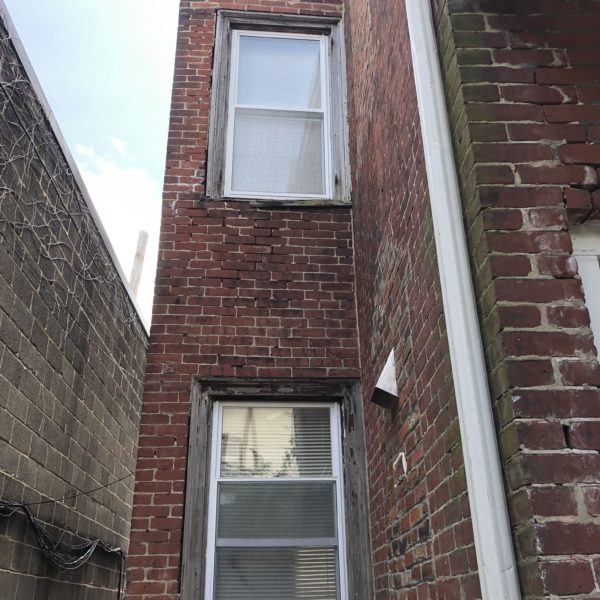

Philadelphia, PA

Work Performed: Brick Reconstruction and Lintel Repair | Date completed: July2020 | Problem: Bricks have shifted and broken due to rusting lintels.

Solution – Carefully remove all damaged bricks to gain access to the damaged Lintels so repairs can be made. Installed new angle iron will be installed above the window.  Through-wall rubber flashing will be installed over the steel and up the back-up wall at least 4”. We reconstructed the outer wythe of bricks in a running bond pattern, with the inverted and concave water table bricks that match the existing style.

Philadelphia, PA

Work Performed: Brick Reconstruction and Lintel Repair | Date completed: May 2020 | Problem: Bricks have shifted and broken due to rusting lintels.

Solution – Carefully remove all damaged bricks to gain access to the damaged Lintels so repairs can be made. Installed new angle iron will be installed above the left-side 2nd-floor window.  Through-wall rubber flashing will be installed over the steel and up the back-up wall at least 4”.We reconstructed the outer wythe of bricks in a running bond pattern, with the inverted and concave water table bricks that match the existing style and shape exactly.  The joints were struck with a worn pointing tool, to create a beveled mortar joint that is sealed from “corner to corner” of each brick.  After the mortar set, the pointing was brushed and shined

Philadelphia, PA

Work Performed: Brick Reconstruction and Lintel Repair | Date completed: February 2020 | Problem: Bricks have shifted and broken due to rusting lintels.

Solution – Carefully remove all damaged bricks to gain access to the damaged Lintels so repairs can be made. Installed new angle iron will be installed above the window.  Through-wall rubber flashing will be installed over the steel and up the back-up wall at least 4”. We reconstructed the outer wythe of bricks, with the inverted and concave water table bricks that match the existing style and shape exactly.

Spruce Street, Philadelphia, PA

Work Performed: Lintel Repair | Work Completed: November 2018 | Problem: Rusting lintels due to water infiltration.

Solution – Remove all rust, polish lintel, Paint with rust inhibitor then re-point using type “N” mortar leaving weep holes every 8”.

Wallace Street, Philadelphia, PA

Work Performed: Lintel Replacement | Work Completed: October 2019 | Problem: Wooden lintels rotted out causing failure in brick.

Solution – Replaced Lintel with steel angle iron, re-laid bricks and re-stucco to match existing.

Contact us today to schedule an estimate!
